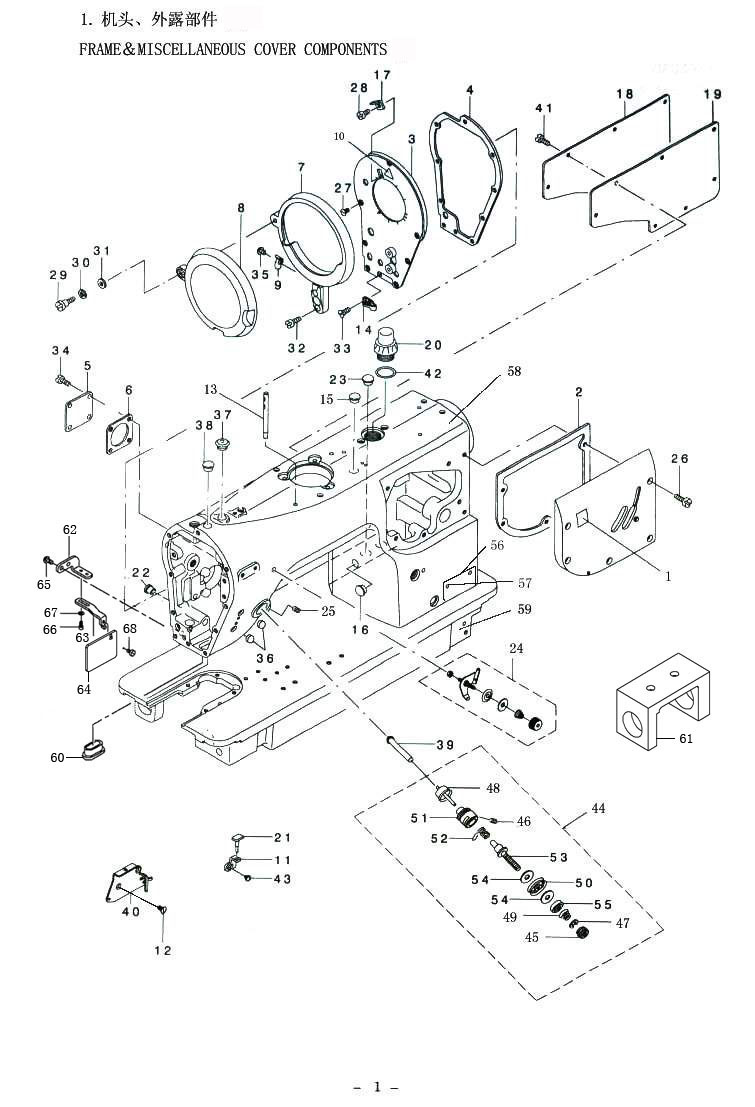

01 |
|
操作图章 OPERATION SEAL |
1 |
|
|
02 |
PF22840102 |
机壳前盖板垫 GASKET |
1 |
|
|
03 |
PF22840103 |
面板 FACE PLATE COMPL. |
1 |
|
|
04 |
PF22840104 |
面板垫 GASKET OF FACE PLATE |
1 |
|
|
05 |
PF22840105 |
松线窗盖板 TENSION RELEASE WINDOW PLATE |
1 |
|
|
06 |
PF22840106 |
松线窗盖板垫 GASKET |
1 |
|
|
07 |
PF22840107 |
平盖底座 BALANCE COVER BASE |
1 |
|
|
08 |
PF22840108 |
平盖 BALANCE COVER |
1 |
|
|
09 |
PF22840109 |
弹簧片 SPRING |
1 |
|
|
10 |
|
警告标牌 ATTENTION SEAL |
1 |
|
|
11 |
PF22840111 |
挑线簧防护架 SPRING GUARD |
1 |
|
|
12 |
PF19000752 |
导线板螺钉 SCREW 11/64-40 L=8 |
2 |
|
|
13 |
PF22840113 |
导线柱 THREAD GUIDE PIN |
1 |
|
|
14 |
PF22840114 |
面板线勾 SPRING GUARD |
1 |
|
|
15 |
PF22840115 |
橡皮塞 RUBBER PLUG |
1 |
|
|
16 |
PF22840716 |
橡皮塞 RUBBER PLUG |
1 |
|
|
17 |
PF22840117 |
挑线割线刀 TAKE-UP THREAD CUTTER |
1 |
|
|
18 |
PF22840118 |
后盖板 SIDE PLATE |
1 |
|
|
19 |
PF22840119 |
后盖板垫 GASKET |
1 |
|
|
20 |
PF888056D112 |
示油窗 OIL SIGHT WINDOW |
1 |
|
|
21 |
PF22840121 |
限位橡皮 RUBBER STOPPER |
1 |
|
|
22 |
PF22840122 |
橡皮塞 PLUG D=8 L=4.5 |
1 |
|
|
23 |
PF22840716 |
橡皮塞 RUBBER PLUG |
1 |
|
|
24 |
PF22840124 |
预张力夹线器组件 PRE-TENSION CONTROLLER ASM. |
1 |
|
|
25 |
PF20521123 |
夹线器螺钉 SCREW 11/64-40 L=6.5 |
1 |
|
|
26 |
PF2284050702 |
前盖板螺钉 SCREW 3/16-28 L=14 |
5 |
|
|
27 |
PF5550637 |
面板螺钉 SCREW 11/64-40 L=8 |
7 |
|
|
28 |
PF22840128 |
挑线割线刀螺钉 SCREW 1/8-44 L=3.8 |
1 |
|
|
29 |
PF22840129 |
平盖铰链螺钉 HINGE SCREW D=6.35 H=7.5 |
1 |
|
|
30 |
PF22840130 |
波形垫圈 WAVED WASHER 6.4×11×0.3 |
1 |
|
|
31 |
PF22840131 |
平盖铰链垫圈 WASHER 6.5×11×1 |
1 |
|
|
32 |
PF22840132 |
平盖底座固定螺钉 SCREW 11/64-40 L=9 |
2 |
|
|
33 |
PF22840133 |
面板线勾螺钉 SCREW 9/64-40 L=7 |
1 |
|
|
34 |
PF5550230 |
松线窗盖板螺钉 SCREW 3/16-28 L=6 |
4 |
|
|
35 |
PF5550230 |
弹簧片螺钉 SCREW 3/16-28 L=6 |
1 |
|
|
36 |
PF22840136 |
橡皮塞 DRIVING STOPPER RUBBER |
2 |
|
|
37 |
PF22840115 |
橡皮塞 RUBBER PLUG |
1 |
|
|
38 |
PF22840716 |
橡皮塞 PLUG |
1 |
|
|
39 |
PF22840139 |
松线顶杆 THREAD RELEASE |
1 |
|
|
40 |
PF22840140 |
导线板 BALANCE THREAD GUIDE |
1 |
|
|
41 |
PF555016 |
后盖板螺钉 SCREW 3/16-28 L=10 |
1 |
|
|
42 |
PF5550825 |
示油窗O形圈 RUBBER RING |
1 |
|
|
43 |
PF22840143 |
挑线簧防护架螺钉 SCREW 9/64-40 L=3.5 |
1 |
|
|
44 |
PF22840144 |
夹线器组件 THREAD TENSION ASM. |
1 |
|
|
45 |
PF22840145 |
夹线螺母 TENSION NUT |
1 |
|
|
46 |
PF22840146 |
夹线座螺钉 SCREW 9/64-40 L=5.5 |
1 |
|
|
47 |
PF22840147 |
夹线螺母止动片 ROTATING STOPPER |
1 |
|
|
48 |
PF22840148 |
松线钉 TENSION RELEASE PIN ASM. |
1 |
|
|
49 |
PF22840149 |
夹线簧 TENSION SPRING |
1 |
|
|
50 |
PF22840150 |
夹线盘组件 THREAD TENSION DISK COMPL. |
1 |
|
|
51 |
PF22840151 |
夹线座 THREAD TENSION ROD ASM. |
1 |
|
|
52 |
PF22840152 |
挑线簧 TAKE-UP SPRING |
1 |
|
|
53 |
PF22840153 |
夹线螺钉 THREAD TENSION POST ASM. |
1 |
|
|
54 |
PF22840154 |
毛毡 FELT |
2 |
|
|
55 |
PF22840155 |
夹线板 TENSION DISC HOLDER |
1 |
|
|
56 |
BZ3095 |
型号牌 MODEL PLATE |
1 |
|
|
57 |
|
铆钉 RIVET |
2 |
|
|
58 |
PF22840147 |
机壳 ARM |
1 |
|
|
59 |
PF22840148 |
底板 BED |
1 |
|
|
60 |
PF2284014701 |
针杆摆动槽挡油板 ARM OIL SHIELD |
1 |
|
|
61 |
PF2284014801 |
送料摇杆支架 FEED DRIVING ROCKER SUPPORT |
1 |
|
|
62 |
PF22900167 |
护目镜安装板 GUARD VIEW INSTALLING BASE |
1 |
|
|
63 |
PF22900166 |
护目镜安装支架 GUARD VIEW SUPPORT |
1 |
|
|
64 |
PF22900165 |
护目镜 GUAER VIEW |
1 |
|
|
65 |
PF22840304 |
护目镜安装板螺钉 SCREW 11/64-40 L=7.8 |
2 |
|
|
66 |
PF555068 |
护目镜安装支架螺钉 SCREW 1/8-44 L4.5 |
1 |
|
|
67 |
|
垫片 WASHER |
1 |
|
|
68 |
PF5550312 |
护目镜螺钉 SCREW 9/64-40 L=6 |
1 |
